Actuators up to 105,000inlbs.

Planetary gears.

Rugged cast aluminum bodies with removable drive bushings and 3 phase motors.

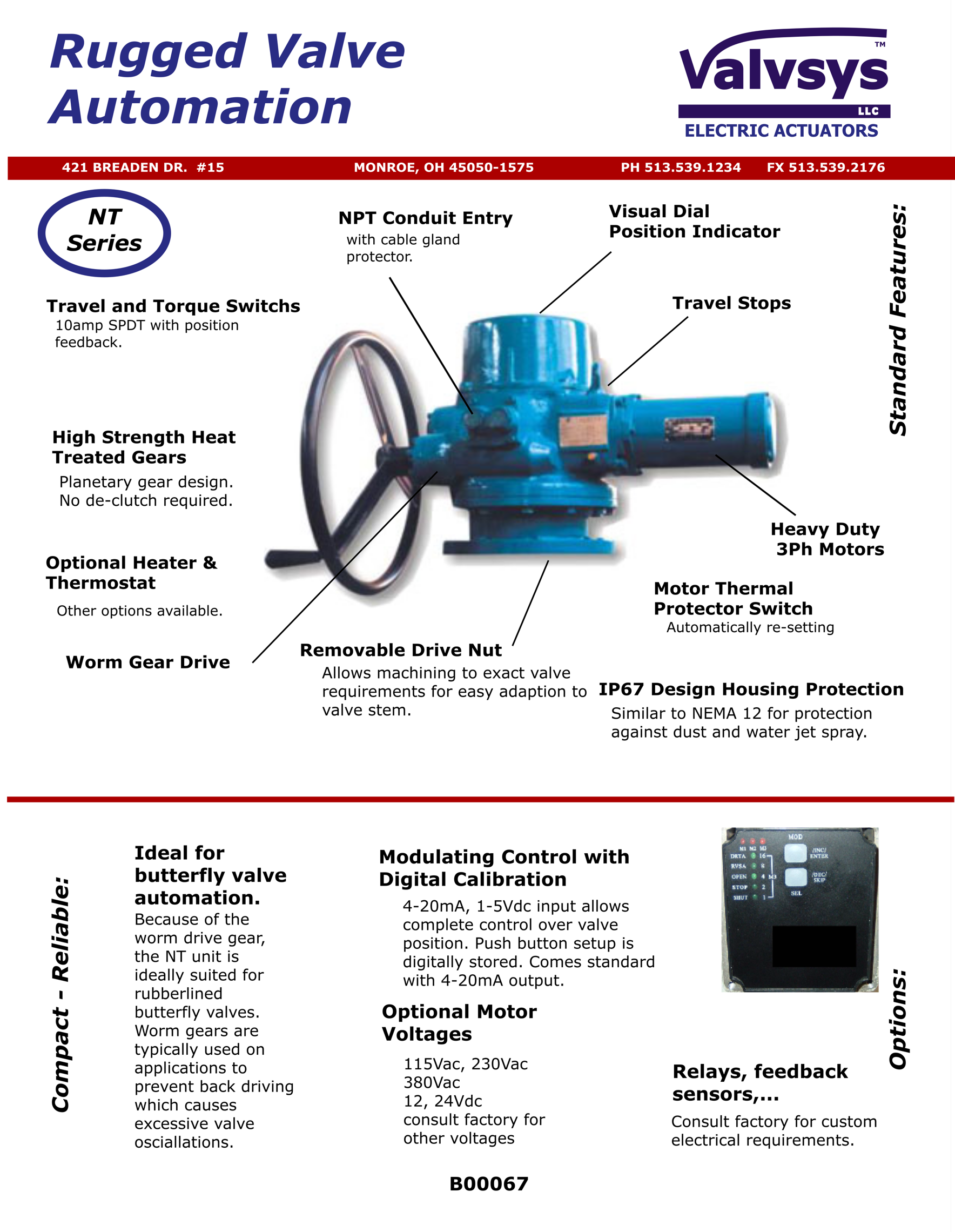

NTl Model   - Planetary gear

The NTL models are IP67 (simiar to NEMA 12)

The NTL models utilize planetary gearing. In addition to no backdriving, the handwheel is always engaged. Simply rotate it to move the valve.



Electric Actuators

NTL

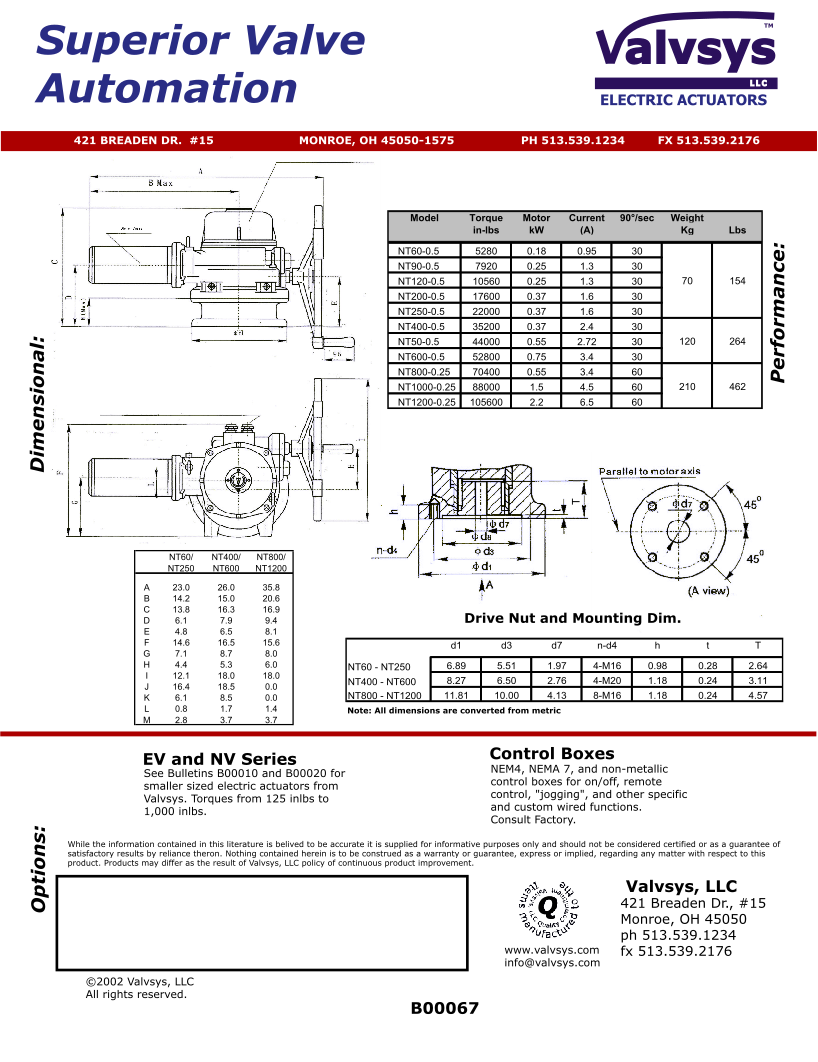

Click on the links below for dimensional information.



• - NTL catalog
• - NTL Use and Care

• NTL60 - 5,280inlbs
• NTL90 - 7,920inlbs
• NTL120 - 10,560inlbs
• NTL200 - 17,600inlbs
• NTL250 - 22,000inlbs
• NTL400 - 35,200inlbs
• NTL500 - 44,000inlbs
• NTL600 - 52,800inlbs
• NTL800 - 70,400inlbs
• NTL1000 - 88,000inlbs
• NTL1200 - 105,000inlbs
