Pneumatic Actuators up to 28,000inlbs.

Compact rack and pinion designs with ISO mounting pads.

The P Series pneumatic can be equipped with optional limit switches and positioners.

P Series   - Pneumatic

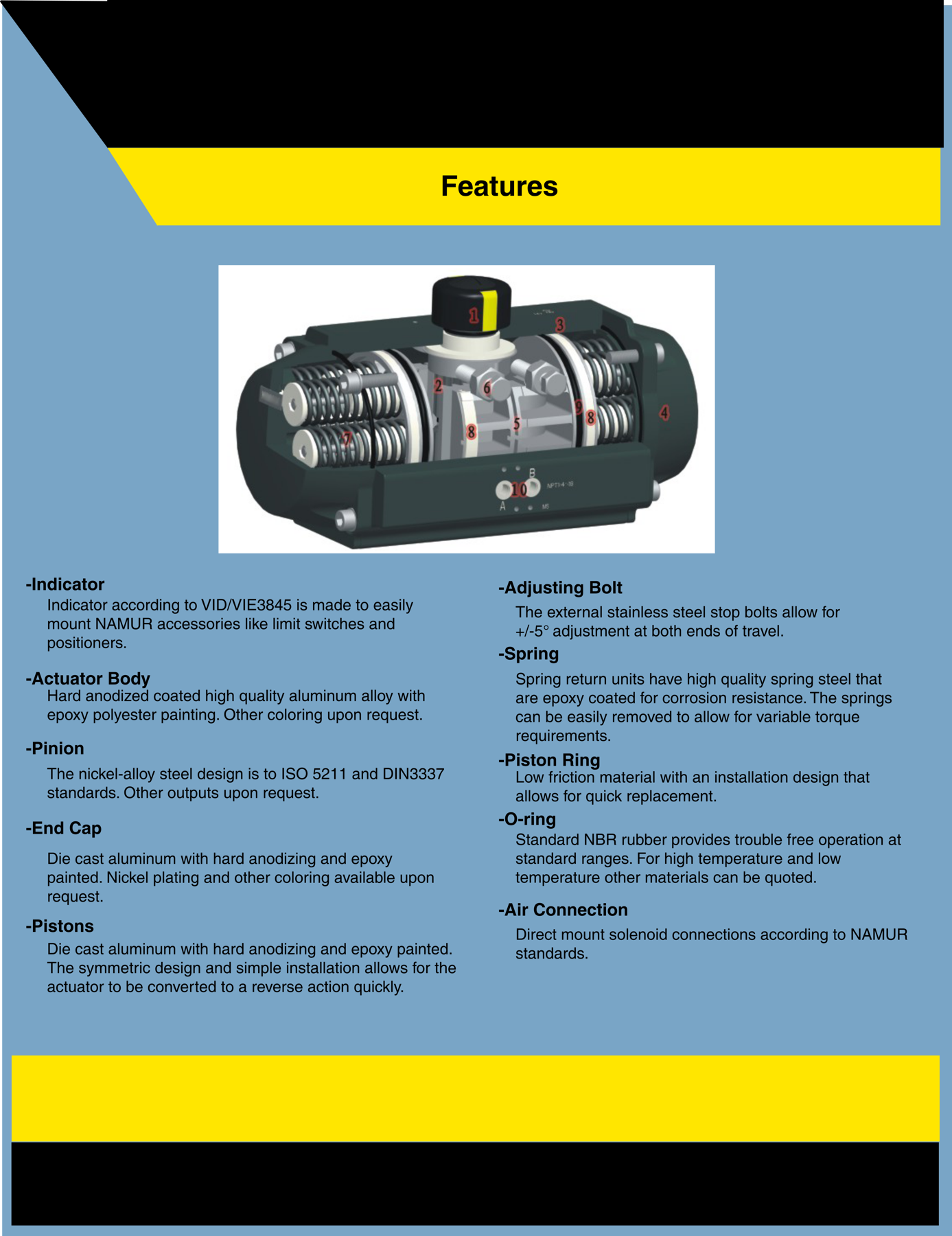

The P series rack and pinion

Aluminum ISO mount design



Pneumatic Actuators

P Series

double acting torques @ 80psi

Click on the links below for dimensional information.

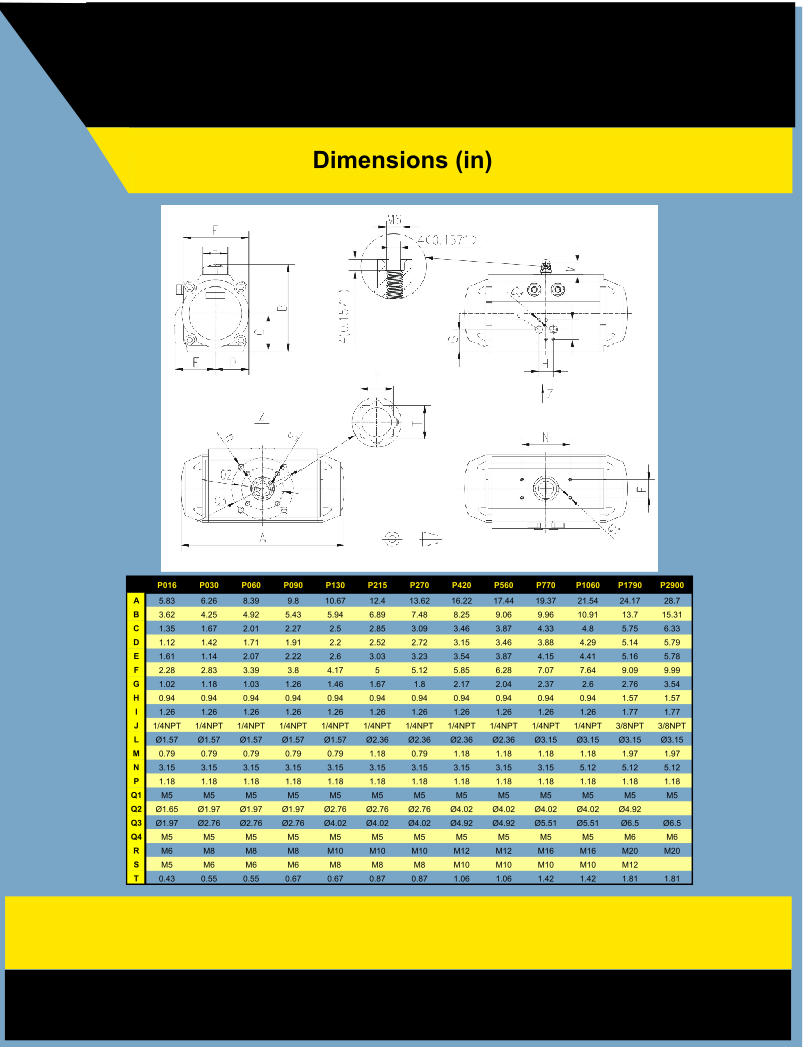

• - P series dimensiona
• - P series catalog

• P016 - 160inlbs
• P030 - 286inlbs
• P060 - 558inlbs
• P090 - 868inlbs
• P130 - 1,272inlbs
• P215 - 2,059inlbs
• P270 - 2,728inlbs
• P420 - 4,202inlbs
• P560 - 5,575inlbs
• P770 - 7,460inlbs
• P1060 - 10,480inlbs
• P1790 - 17,480inlbs
• P2900 - 28,322inlbs
